Addressable RGB LED Strip Controller

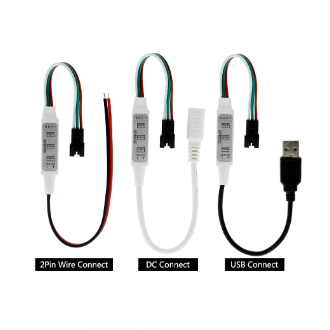

SP002E 3-Button Mini Micro RGB Controller

DC5V 12V 24V
Connector: 4-pin flat female connector, 5.5mm female DC connector, 2-pin wire connector, USB connector
Easily change 19 dynamic modes, 5 speed levels and 5 brightness levels.

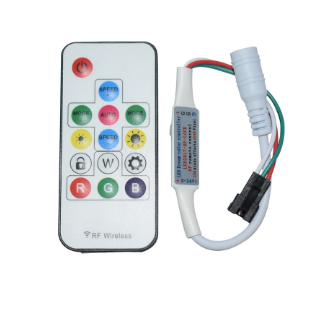

LED Dream-Color 14-Button RF Remote Control

DC5~24V
358 different lighting effects, covering market effects for all symphony controller modes
Program any combination of 16 and play automatically
Maximum number of control points: 2048 pixels.
Maximum remote control distance: 30 meters
For programmable LED strips such as WS2811 WS2812B LED strip

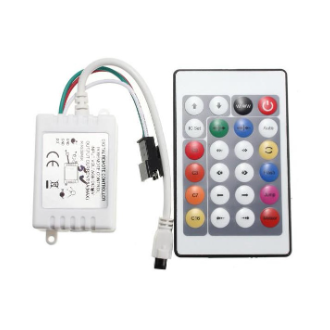

24 Keys Infrared Remote Control For LED Strip Light WS2812

DC5V
16 multi-color buttons and 5 different light mode functions: Static / Flash / Strobe / Fade / Smooth
16 classes static mim control mode
16 speed control in flash/strobe/fading/RGB fade modes
Perfect for addressable LED strips such as WS2812b LED strip.
Control range: 10cm — 500cm RGB LED strips

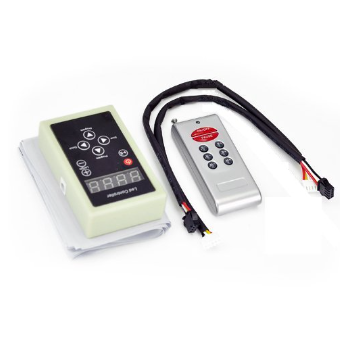

5v 12v 8 key 133 RF remote control

DC5V 12V
For WS2811 1903 WS2801 LPD8806 LED strip, modules, garlands
Output: Two groups of SPI signals
Comes with 133 different light changing patterns.
Length adjustment function
Lots of programs to choose from
Memory function

K-8000L 8 Ports Offline SD Card TTL DMX512 RGB LED Strip Controller

Gray level adjustment from 32 to 65536 degrees, gamma correction
Support various spot, linear and panel light sources, special pattern shapes
8 output ports, each can support up to 512/1024 pixels (DMX protocol up to 512 pixels)
The playback content is saved on the SD card, which can store up to 32 files, the SD card capacity is 128MB-32GB.
The controller can be used in a single unit or in multiple cascades. The cascade uses optical isolation: anti-interference, better stability, and the cascade distance between two units is up to 150 meters when using 0.5mm2 copper power cable.
The lamp load support is 4 channels (RGBW) pixels or divided into single channel pixels
Improved 485 TTL and 485 differential (DMX) output signal
The controller has 16 built-in effects (the default internal control chip is 1903)

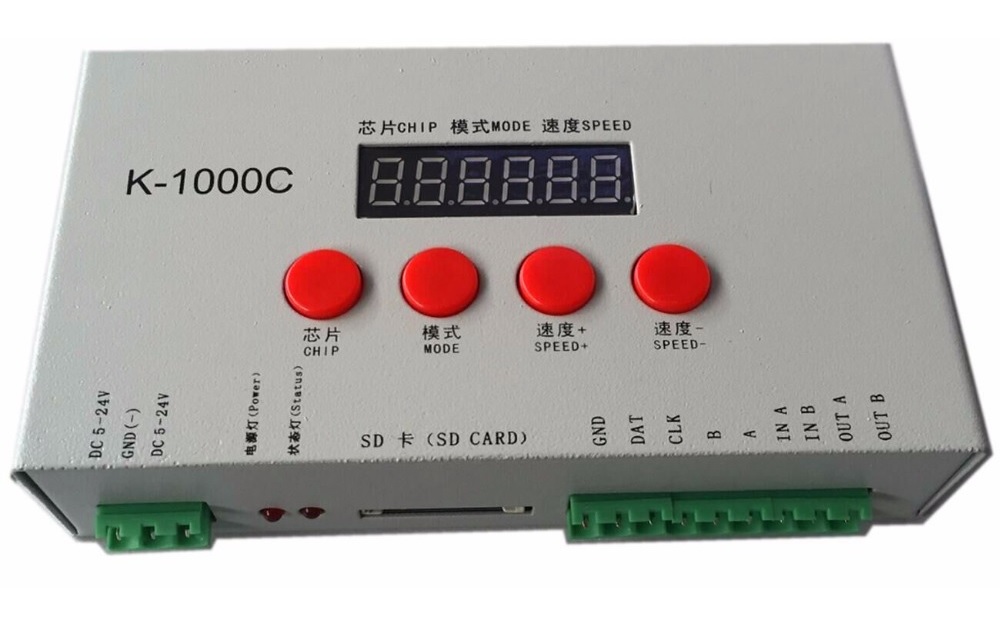

K-1000C Standalone RGBW LED Pixel Controller with SD Card

Gray level adjustment from 32 to 65536 degrees, gamma correction processing knob
Support various spot, linear and panel light sources, special pattern shapes
One output port can support up to 512/2048 pixels (DMX protocol up to 512 pixels)
The playback content is saved on the SD card, which can store up to 32 files, the SD card capacity is 128MB-32GB.
The controller can be used in a single unit or in multiple cascades. The cascade uses optical isolation: anti-interference, better stability, and the cascade distance between two units is up to 150 meters when using 0.5mm2 copper power cable.
The controller support chip can lock the IC support in software or not lock the IC support in software, select the IC support by the controller CHIP button, it is more flexible and convenient.
For DMX lighting, the controller is equipped with address recording function; in addition, using our LedEdit-K V3.26 2016 or later, you can set the address recording function with one key
The lamp load support is 4 channels (RGBW) pixels or divided into single channel dot pixels
Improved 485 TTL and 485 differential (DMX) output signal
The controller has 22 built-in effects for testing.

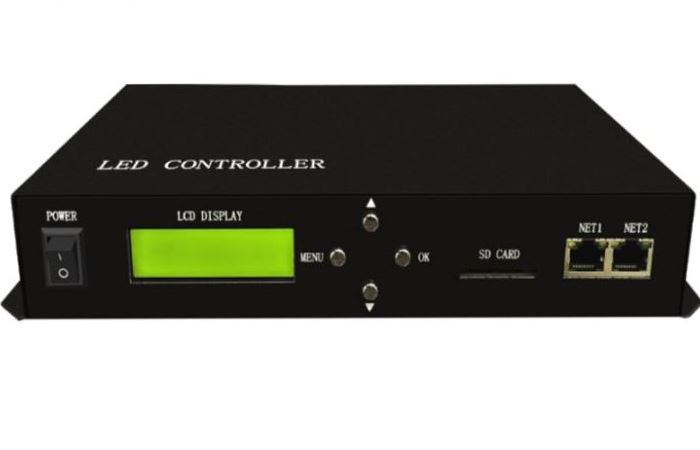

H803TC Online Offline DMX Master RGB LED Strip Controller

H803TC can work with PC (online mode), SD card (offline mode) or DMX console.
H803TC controls max 170000 pixels, 2 ports control max 255 slave controllers
Slave controllers include H802RA and H801RC
You can set the address for DMX512 chips with H803TCH803TC transmits data based on Ethernet protocol
Use four buttons or PC to switch files, set play mode, speed and brightness
The SD card supports FAT32, FAT16 format, maximum capacity 64GB, can store up to 64 DAT files.
H803TC supports the following driver chips:
LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914, TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, D1530,LD1532, TLS3001, TLS3002, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595, 6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012 etc.
Note: H803TC can support more chips than listed above (some chips have the same sequence diagram, such as: UCS512, WS2821 and DMX512 have the same protocol. UCS2903 has the same sequence diagram as UCS1903, so H803TC supports them all).

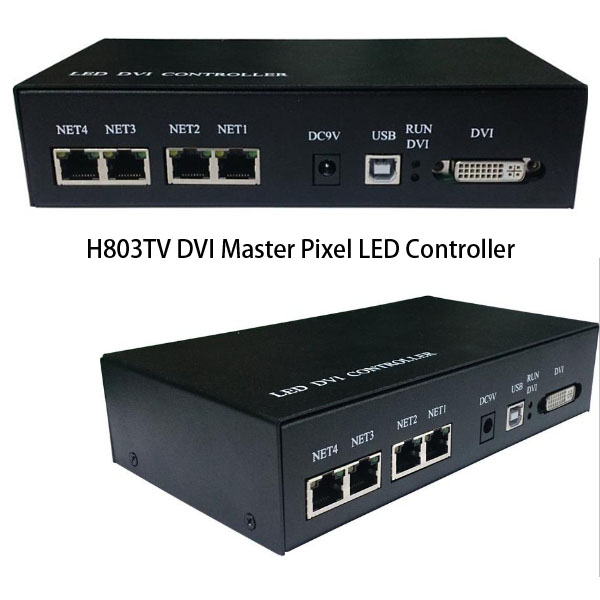

H803TV online Madrix main controller DVI/HDMI interface for 3D and music effects

Four network interfaces provide processing of a maximum of 400,000 pixels
Supports dual monitor mode, multi-monitor extend mode and duplicate mode.
The four ports are separated and configured individually, meaning the four ports can control different chips. Compatible with Madrix software, displays everything that is displayed on your screen
Connect a video splitter to manage a portion of the video in sections
Supports the following resolutions: 1024×768, 1280×720, 1280×960, 1280×1024, 1360×765, 1360×1020, 1600×900, 1600×1200
Use USB Autorun to transfer and manage data, which applies to both 32-bit and 64-bit operating systems.
Auxiliary Slave Controller — H801RA, H802RA and H801RC
Data is transmitted via standard Ethernet protocol from H803TV to the slave controller, the transmission distance is up to 100 meters.
The recommended screen refresh rate is 60 Hz.

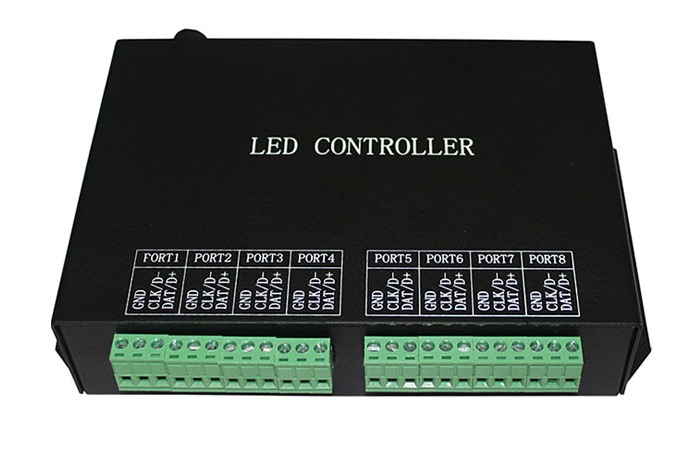

H801RC Offline Online 8 Port RGB LED Slave Light Controller

H801RC can be connected to computer switch, H803TC or H803TV main controller, switch or photoelectric converter.
8 output ports provide a maximum resolution of 8192 pixels
High synchronization performance, transmission delay of neighboring slave controller within 400ns
Good control effect and grayscale level are under precise control
Long transmission distance. The signal is transmitted based on the standard Ethernet protocol, and the nominal transmission distance is 100 meters.
The clock scan frequency is adjustable from 100K to 50MHz.
Offline support software — «LED Build Software», online support software — «LED Studio Software»

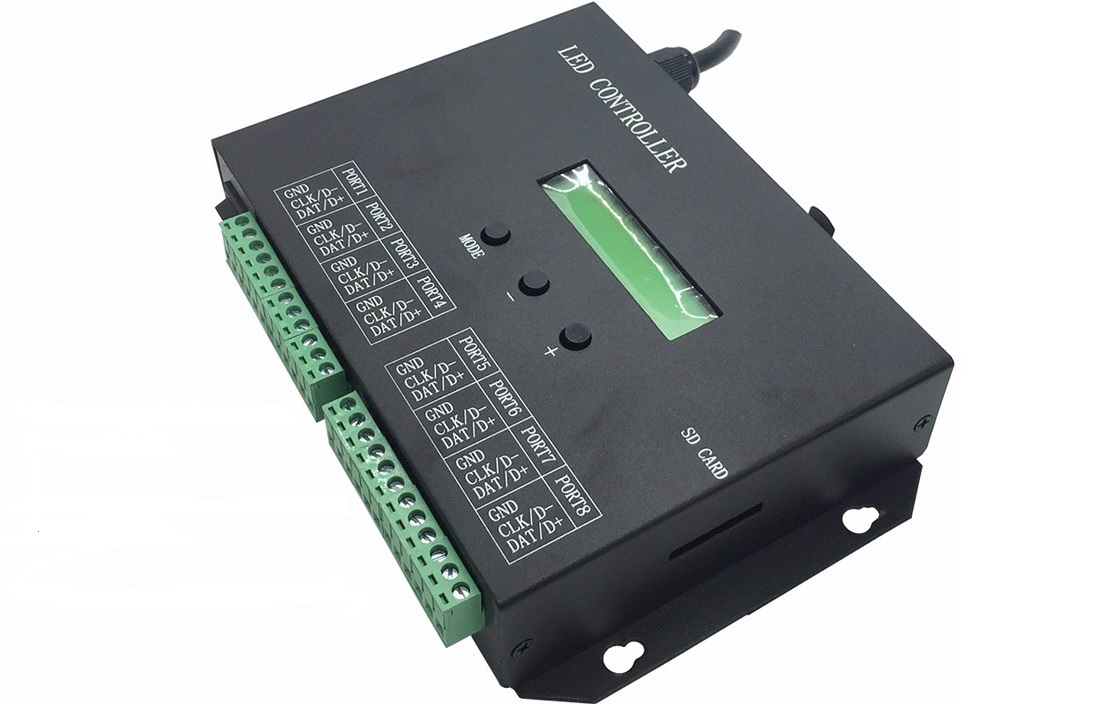

H803SA 8-Port Standalone DMX Compatible RGB LED Strip Controller

H803SA is a standalone RGB LED controller.
H803SA has 8 ports controlling maximum 8192 pixels, each port controlling maximum 1024 pixels
SD card can store DAT files in FAT32, FAT6, 64 formats of files programmed by LED Build software.
Many controllers can be synchronized with an AC power source.
H803SA can be connected to DMX console, you can switch files, adjust speed and brightness by DMX console.
Support encryption by limiting the number of power cycles
H803SA supports the following chipsets:
LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

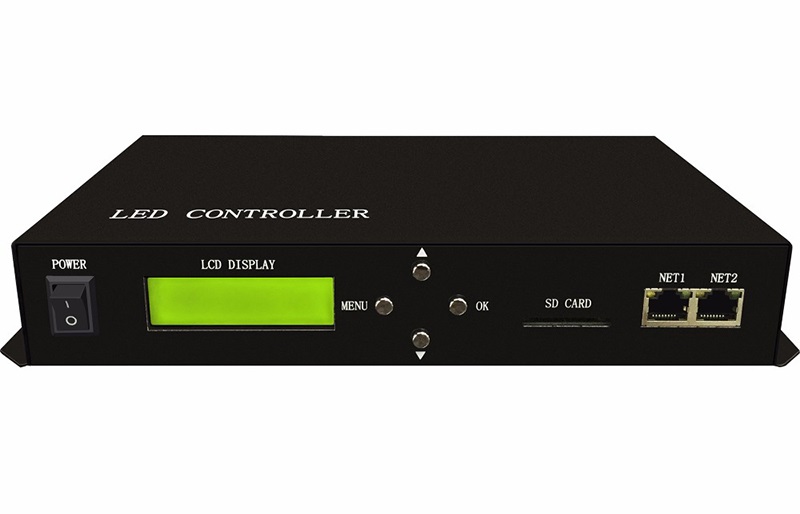

H802TB DMX512 Compatible Standalone LED Master Pixel Controller

H802TB is a master controller that reads data from SD card to control multiple slave controllers.
Slave Controllers — H801RA, H802RA and H801RC
Two ports control a maximum of 64 slave controllers, control a maximum of 40960 pixels
H802TB can be connected to DMX console and takes up 3 channels, so you can switch files, adjust speed and brightness via DMX console.
You can set the address for DMX512 chips with H802TB
Data transmission via Ethernet protocol, nominal transmission range 100 meters.
The SD card supports FAT32, FAT16 format, maximum capacity 64GB, can store up to 64 DAT files.
Supporting software — «LED Build Software»
Supported driver chips:
LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV etc.
Note: H802TB can support more chips than listed above (some chips have the same sequence diagram, such as: UCS512, WS2821 and DMX512 have the same protocol, H802TB supports them all).

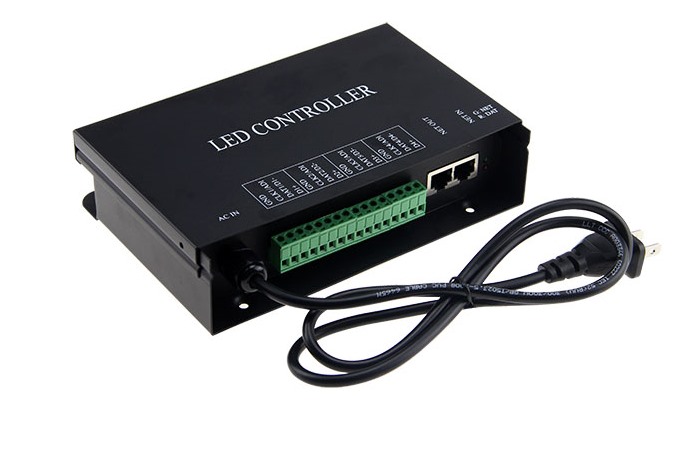

H802RA Ethernet Art-Net Protocol Slave Addressable LED Controller

The H802RA is a 4-port Ethernet output controller that supports Art-Net protocol.
4 ports control maximum 4096 pixels
Supports Art-Net protocol, so H802RA can work with MADRIX
Address for TM and UCS DMX512 driver chips such as TM512, UCS512
Configured as a repeater or amplifier for LED Studio
Working with the main controller or computer
The distance between two controllers is up to 100 meters.
Online programs — LED Studio and Madrix.
Supported driver chips:
DMX512, HDMX, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, LPD1886, TM1812, TM1809, TM1804, TM1803, TM512, TM1926, TM1913, TM1914, TM1814, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS512, UCS8904, APA102, APA104, P9813, WS2801, WS2803, WS2811, WS2812, WS2821, SM16716, SM16711, INK1003, LX1003, MY9221, MBI6021, MBI6024, LD1510, LD1512, LD1530, LD1532, etc.
