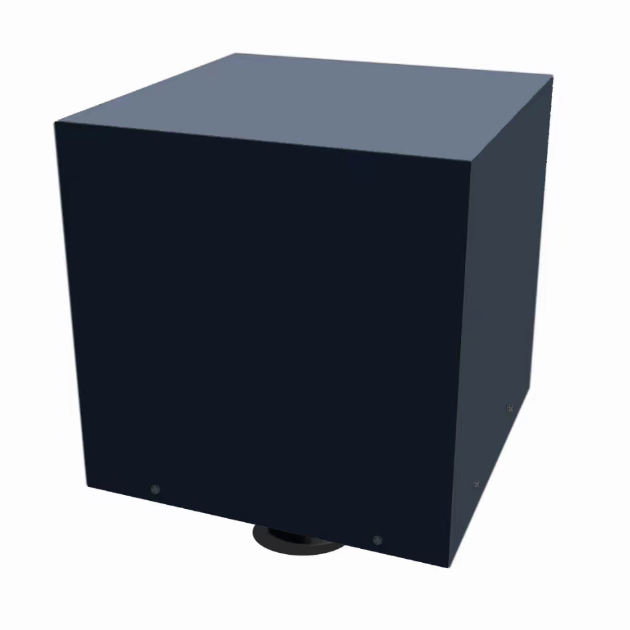

Rubik's cube light

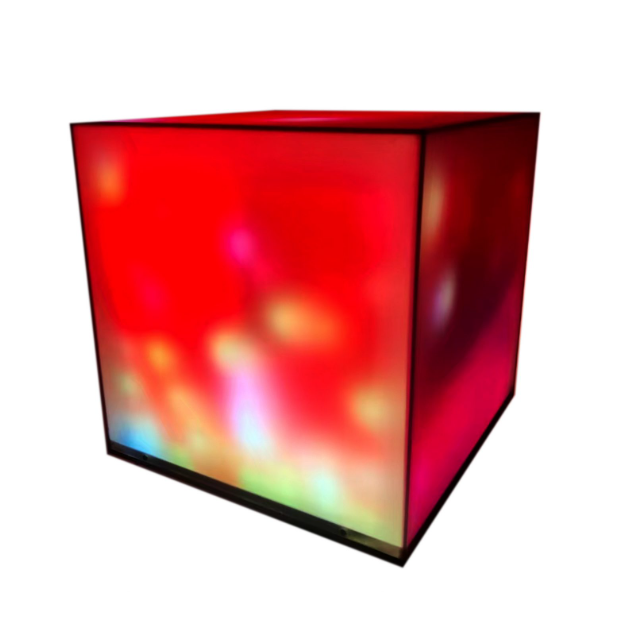

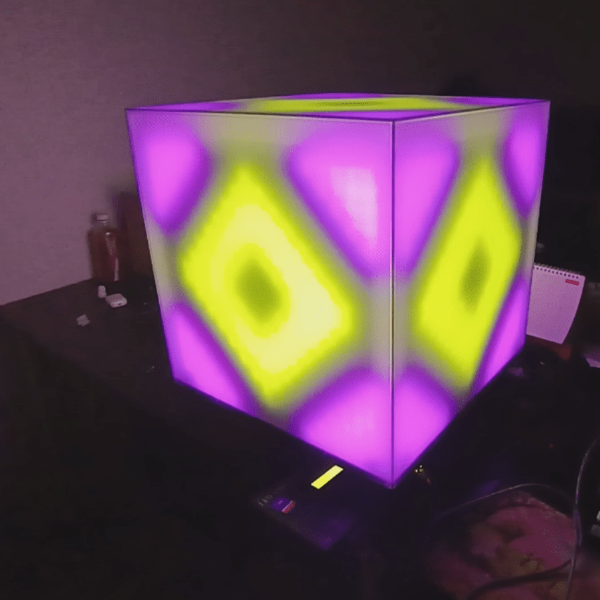

3D pixel Rubik's cube glowing
- 3D facade pixel screen consisting of 980 pixels 5-sided phantom pixel light panels
- Compatible with any Symphony controller, can output signal in standalone mode, in DVI, ARTNET, DMX512 control modes
- It can be controlled by a TTL controller connected to an intelligent central control or DMX512 console.
- The body is made using a high-tech method of light diffusion with acrylic, which makes the visual effect soft and comfortable.
- Built-in power supply, can be directly connected to a 220V power source.
- The signal input is via the RJ45 network port.
Description:
Intelligent three-dimensional magic installation problem using the simplest, fastest, support diversification, can be different for the structure of different environments to choose the appropriate installation. The product itself is equipped with installation accessories, eliminating tedious wiring and improving the overall installation process with the highest efficiency.
For structural site design, this is often the most tedious work for scene artists. 3D Rubik’s cube can be used to achieve high-end shocking visual lighting effects with the simplest layout. Matrix and ring layout of the environment can be used.
The 3D Rubik’s Cube can be programmed directly by MADRIX, or it can be imported into the controller after editing a good effect to form a file with the general operation of DMX512 console, Tiger, MA2 console.
The most common wiring method, directly using 220V power supply, signal line for a separate group, no need to worry about its series. Low power consumption, no need to consider the grouping of strong electricity, no need to worry about electricity.
With our extensive project delivery experience, SDIP is well aware of potential quality and installation issues and we employ specialized manufacturing and quality control strategies to mitigate potential problems across the plant.
In addition to physical light strips, SDIP offers a complete solution for site audit, layout design, lighting effects and programming based on LedEdit or Madrix software platforms, product development and implementation, installation and commissioning, and our field engineer teams travel to your site.
Technical specifications:
| Dimensions: | 295*295*290mm | Signal protocol: | Serial SPI interface |
| Voltage: | 220v | Signal distance: | 120m / 50m |
| Maximum power: | 75 W | Anti-interference protection: | Optoisolator |
| IC: | WS2812-2020 | Control type: | Individually addressable |
| Number of IS: | 980 pcs. | Installation: | lifting ring screw |
| LED type: | SMD5050 RGB | IP address speed: | IP33 |
| Number of LEDs: | 980 pcs. | Operating temperature: | -40°~70° |
| Profile: | PVC | Weight: | 5 kg |
| Lid : | high quality acrylic | OEM Manufacturer: | Supported |
Installation environment and installation method:
- If the mounting surface is wooden, it is secured with screws.
- If the mounting surface is a steel structure, the structure is first manufactured and then welded to it.
- For heights over 4 meters, you can choose to install a hook for stage lighting.
Rubik's Cube - The Complete Guide to Frequently Asked Questions
1.What is a Rubik’s Cube and what effect can be achieved with it?
The reason it is called a Rubik’s Cube is because it has the same shape as a Rubik’s Cube. It is three-dimensional and glows on five sides. The effect can be programmed to be the one you like.
2. Dimensions and characteristics of the glowing Rubik’s cube?
Size : The cube is currently available in two sizes: 300mm and 400mm.
Specification:
Power voltage: 220 V
Light bead model: WS2812-2020
Number of pixels: 980 pcs.
Luminous side:5 sides
Length, width and height: 295*295*290 mm
Signal protocol: SPI serial communication
Maximum power consumption: 75 W.
Working current: 15A
Light source life: 50,000 hours
Weight: 5 kg
Channel order: GRB
LED color: RGB
Shades of gray: 256
Waterproof level: IP33
Body: high quality acrylic
3.What materials are used to make Rubik’s cube bulbs?
Rubik’s Cube body material is high quality acrylic.

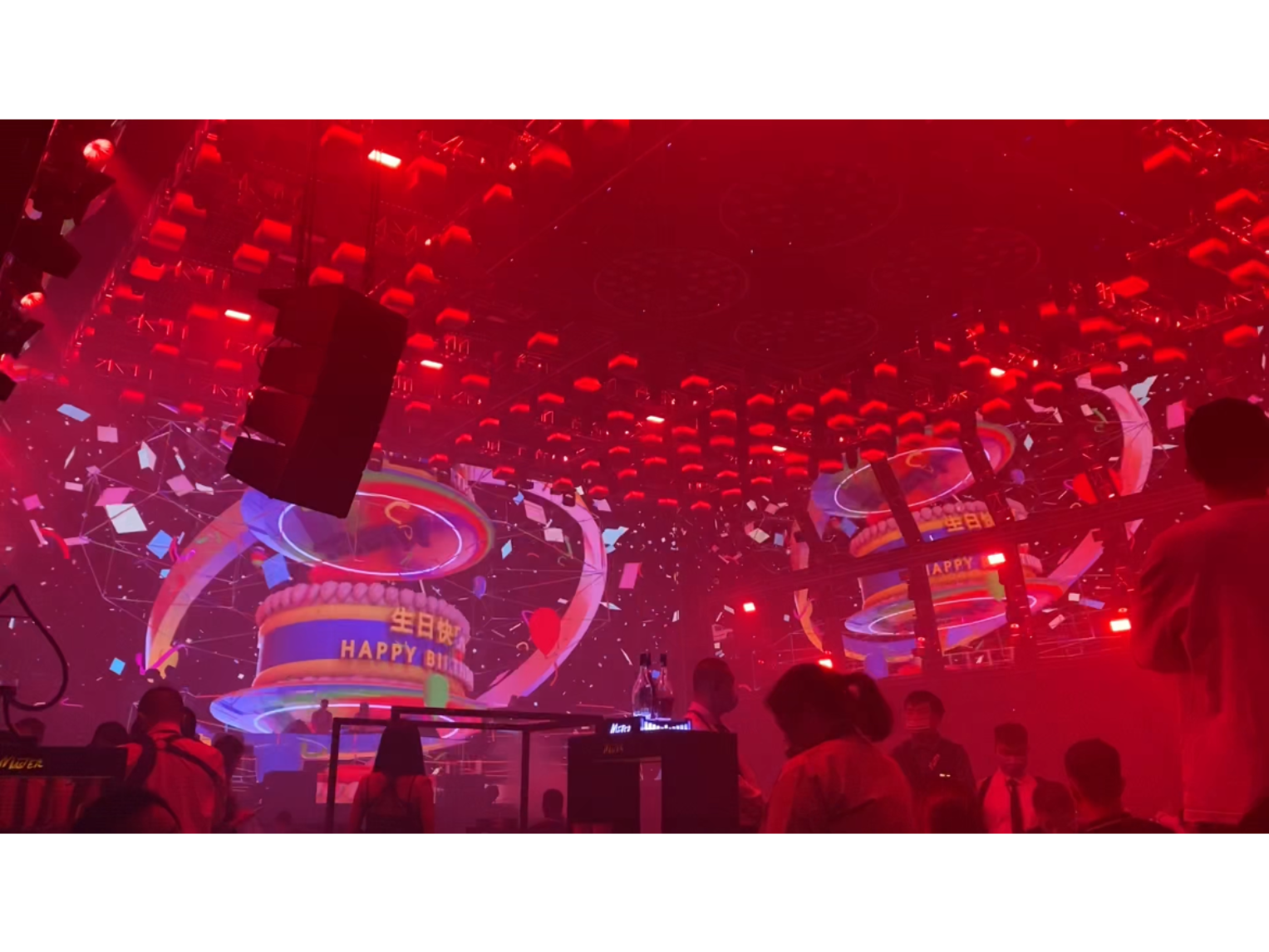

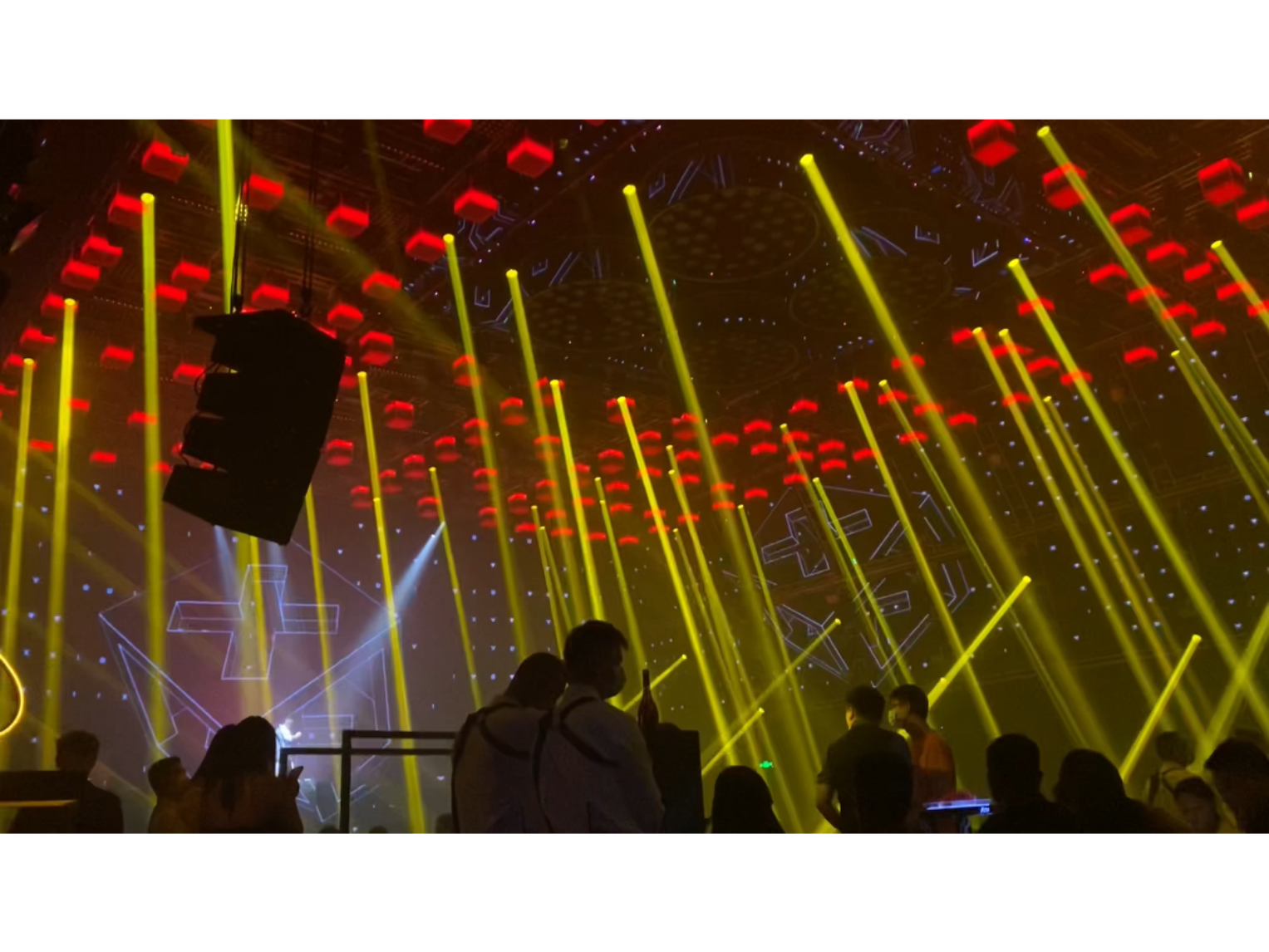

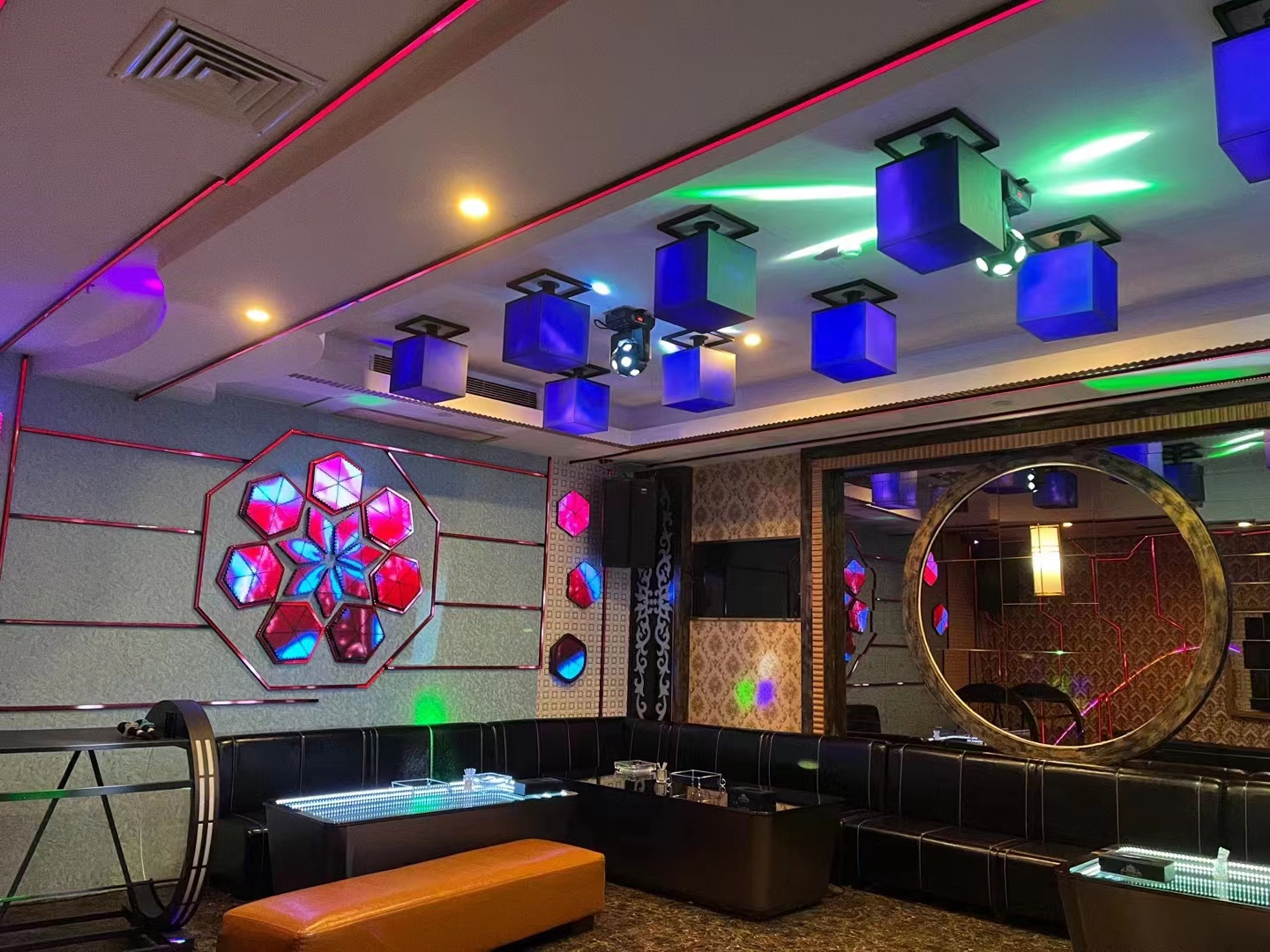

4.Where is the Rubik’s light cube used?

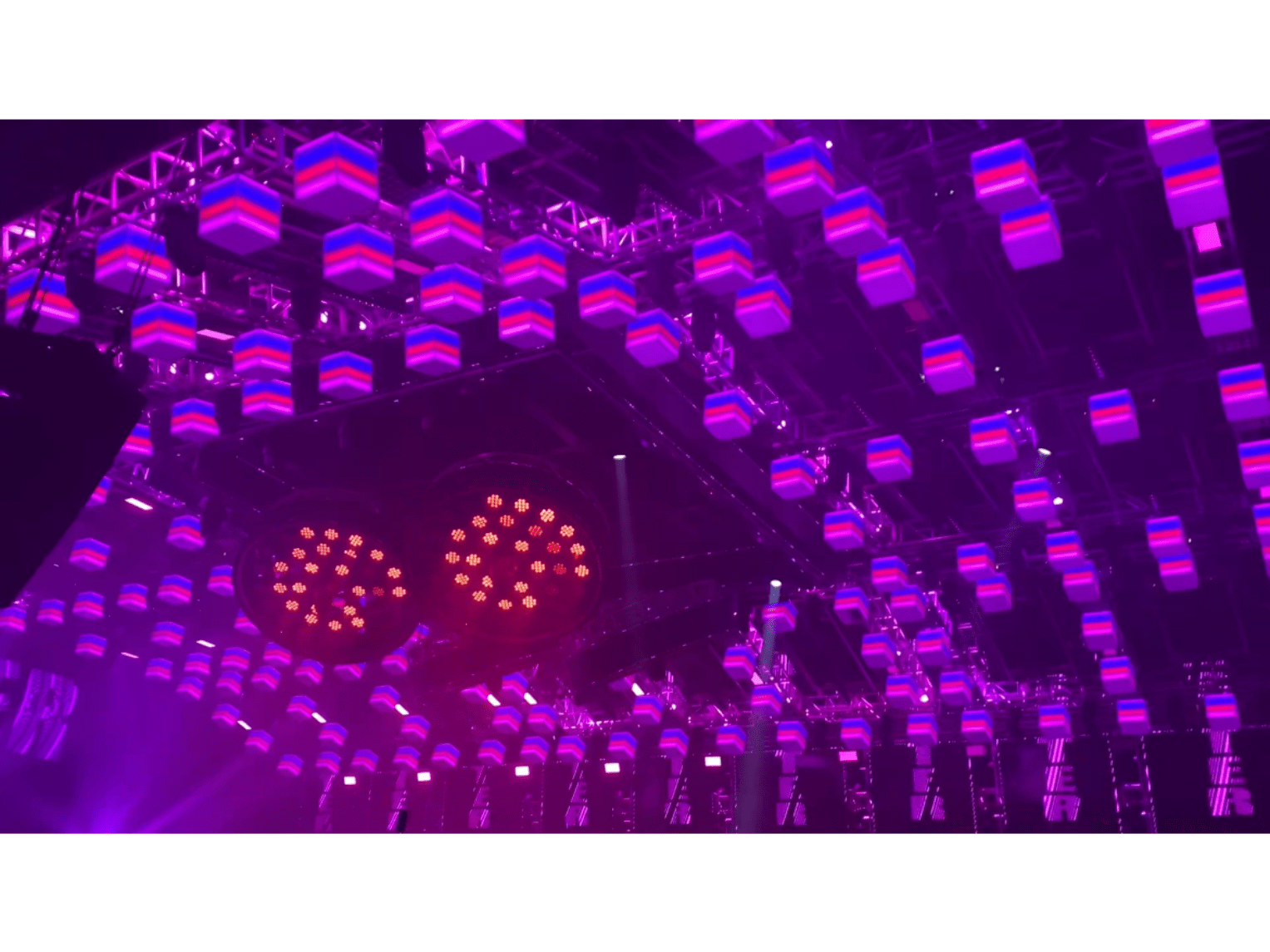

The Rubik’s Cube light can be used in bars, karaoke, night clubs, all kinds of clubs and at public events.
5. Is it possible to individually adjust the lights in the Rubik’s Cube?
Yes, the beads in a Rubik’s Cube are individually addressable.
6. What are the power requirements for the Rubik’s Cube lights?
The Rubik’s Cube lamp operates from a 220 V power source with a maximum power of 75 W.
7. What is the quantitative relationship between the Rubik’s Cube lamps and the controllers?
A 300mm Rubik’s Cube has 980 pixels and a 400mm Rubik’s Cube has 1805 pixels. The controller can control 8 300mm Rubik’s Cube lights and only 4 400mm Rubik’s Cube lights
8.Installation Environment and Requirements
If the mounting surface is wooden structure, install and fix it with screws. If the mounting surface is made of iron and steel, you can first use the special equipment for welding the structure, weld the structure. If the height is more than 4 meters, you can choose to install the stage hook.
9.Will the connection be problematic?
Use the most common connection method, direct 220V power supply, signal line for a separate group, do not worry about the serial connection.
10.How to program and control
The Rubik’s Cube is programmed using MADRIX software. It can also be edited in a file and then imported into the controller. It is programmable by the DMX512 controller, Tiger controller and MA2 controller.
